8-Bay Smart XVR
AVZ8136 (36CH Pentabrid) / DGD8132 (32CH Quadbrid)

Pentabrid XVR (AVZ8316 only)
(IP, TVI, CVI, Analog HD and 960H)
The pentabrid XVR accepts IP,TVI, CVI, analog HD and 960H video signals for up to 2MP live display and video recording. It breaks the boundaries of different video systems and enhance the fl exibility for system integration.



Smart IOT Scenario
Customize a Series of Actions
“Smart IOT Scenario” is a new feature allowing you to customize a series of actions which will be run automatically after the specified event occurs. There are several scenario templates for you to choose when and what to do after a specific event occurs.


Long-Time Recording



To solve the large storage requirement of recording, this recorder supports up to 8-bay hard disks to keep high quality video data without overwriting data so quickly. A power-saving mechanism is also adopted to reduce power consumption.
8-bay Disk Storage Full HD


Event Management
Push Video
Real-time Event Notifications

When an alarm event is detected, the recorder will immediately send an event notification to your mobile device within five seconds, and meanwhile, EagleEyes, the mobile surveillance app will be activated automatically for remote video playback.

(AVZ8136 only)

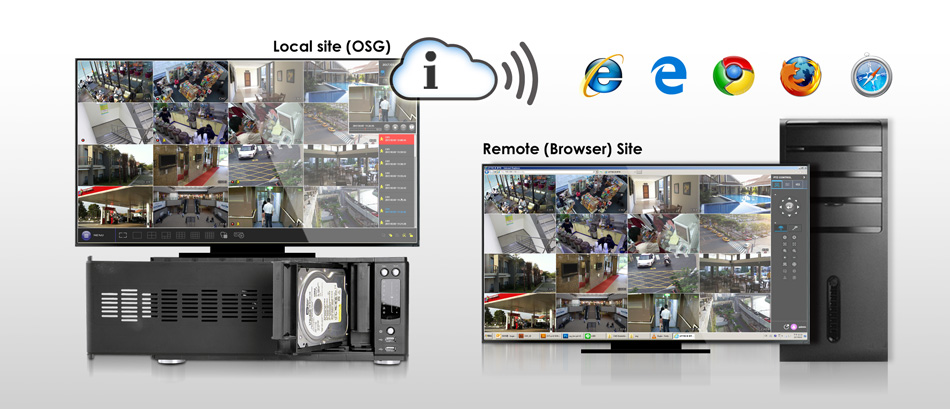

New UX Design
Same User Experience on Local & Remote Sites
The UI design on the local and remote sites (via web browers such as Windows Edge, Internet Explorer, Google Chrome, Safari and Mozilla Firefox) are the same to bring users the same user experience. Users do not need to learn another using logic when they’re trying to access the device, whether locally or remotely.

Spot Monitor
Simply See What You Want

In addition to the main display via the main HDMI, VGA or composite output, you can also assign a secondary display via HDMI-2 to show live view, call monitor or event monitor.

This design is similar to CMS to have different displays for users to get better event management.


Event Pop-up
Video Preview w/ Pre-alarm Images

All events are listed on the right panel with corresponding event icons for you to quickly recognize the event type. The most current one will flash to catch your attention. Click one event and you’re able to preview the footage with pre-alarm images.

This UI design is similar to CMS for users to get better event management.


IVS
Intelligent Video System

This recorder supports IVS (Intelligent Video System) to set a virtual detection line for people counting, virtual fence, and one-way pass. It's the advanced usage for motion detection to notonly record but also summarize the detection datafor further analysis.

(AVZ8136 only)



EaZy Installation & Maintenance
Tool-less Installation
Friendly Hardware Design
Easy hard disk installation and replacement with disk trays and hot-swap design.
Smart heat dissipation mechanism with frenquency conversion to customize the temperature to get the fan worked.
Push Status
Device Health Check
"Push Status" Save your time, save your man power, save your money!
Users could immediately get notified of all abnormal system events for their surveillance systems (such as video loss, system being unlocked, no hard disk, etc.) from their smart phones by the function of Push Status.

User Group
Customize Access Permissions

In addition to the four default user levels, SUPERVISOR, POWER USER, USER and GUEST, you can also customize a user level to assign different access rights to different functions for different user accounts.



Easy Remote Surveillance

EaZy Networking

It is supported to quickly connect this recorder to the internet (P2P), and you're able to see live view from Internet Explorer, PC CMS software and the mobile app EagleEyes.

You can also share the access right of this recorder to your friends or colleagues and configure different access level for each of them.


 EaZy Networking
 Buddy Sharing

Recommended Cameras
Economic TVI camera Series
DGC1004XT DGC1005XT DGC1104 DGC1105

Motorized TVI Camera Series
DGC1306 DGC1304 AVT2406SV AVT1303

Motorized IP Camera Series
IR Bullet w/ alarm I/O IR Dome w/ alarm I/O IR Bullet IR Dome
